Reservoirs .
Reservoirs are ideal for processing with pipetting robots or our LIQUIDATOR96® manual pipettor. There are reservoirs with different configurations, sizes and volume ranges.
We distinguish between unchambered and chambered reservoirs with row or column division, as well as the different heights and well types.
Hard Facts .
- SBS footprint for automation
- Optimized design for reduced sample loss
- Chemical resistant polypropylene
- Free from RNA, DNA, RNase, DNase and pyrogens
- Radiation sterilized versions available
- Other versions on request
Our reservoirs for reagents .
Overview
Unchambered
Longitudinally chambered
Transverse chambered
Other
Overview .
| Item number | Maximum volume | Chambers | Bottom | Profile | Sterile |
|---|---|---|---|---|---|
| LV-01FL | 190 ml | 1 | Flat | Low profile | |
| LV-01FL-S | 190 ml | 1 | Flat | Low profile | X |
| LV-01H | 290 ml | 1 | Pyramid | Standard profile | |
| LV-01H-S | 290 ml | 1 | Pyramid | Standard profile | X |
| LV-01H12 | 290 ml | 1 | V | Standard profile | |
| LV-01H12-S | 290 ml | 1 | V | Standard profile | X |
| LV-01H8 | 290 ml | 1 | V | Standard profile | |
| LV-01H8-S | 290 ml | 1 | V | Standard profile | X |
| LV-01L | 195 ml | 1 | Pyramid | Low profile | |
| LV-01L-S | 195 ml | 1 | Pyramid | Low profile | X |
| LV-08H | 32 ml / chamber | 8 lengthwise | V | Standard profile | |
| LV-08H-S | 32 ml / chamber | 8 lengthwise | V | Standard profile | X |
| LV-08L | 22.1 ml / chamber | 8 lengthwise | V | Low profile | |
| LV-08L-S | 22.1 ml / chamber | 8 lengthwise | V | Low profile | X |
| LV-12H | 22 ml / chamber | 12 across | V | Standard profile | |
| LV-12H-S | 22 ml / chamber | 12 across | V | Standard profile | X |
| LV-12L | 14.8 ml / chamber | 12 across | V | Low profile | |
| LV-12L-S | 14.8 ml / chamber | 12 across | V | Low profile | X |

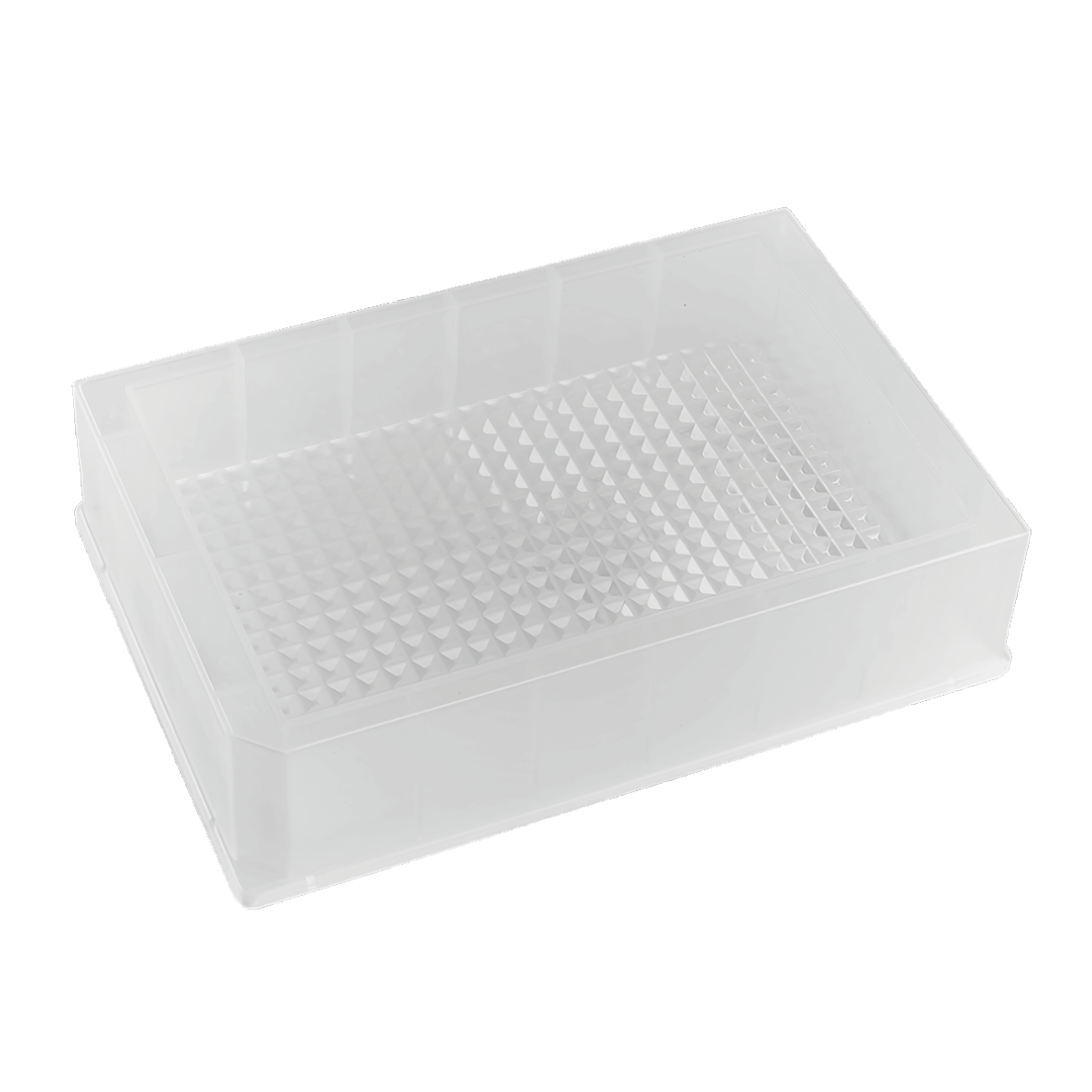

| LV-384H | 290 ml | 1 | Pyramid | Standard profile | |
| LV-384H-S | 290 ml | 1 | Pyramid | Standard profile | X |
| LV-384L | 175.5 ml | 1 | Pyramid | Low profile | |
| LV-384L-S | 175.5 ml | 1 | Pyramid | Low profile | X |
